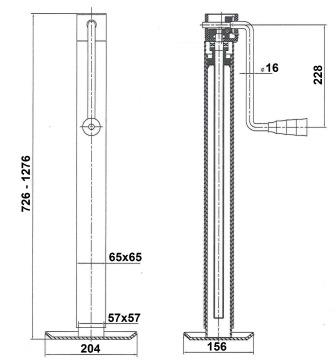

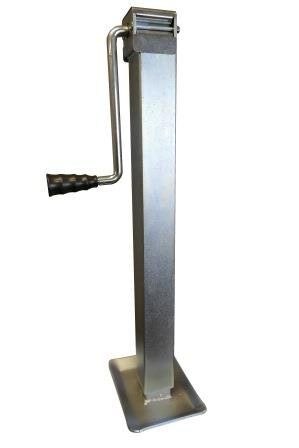

AL01129 SIDE WIND 3180 Kg LONG STROKE

The AL01129 jack has a stroke of 550 mm and is designed for applications requiring a longer than standard lift.



Part Number  AL01129
Model  DT7000L
Static load rating
 3180 kg
Screw stroke. +_ 10mm
 550 mm
 Tube size diameter x shape
 70mm SQ
 Unit weight
 12 kg
Finish  zinc plated
Mount  none
