AL01121 SIDE WIND TUBE MOUNT 3180 Kg
The AL01121 is a side wind tube mount jack suited to agricultural and industrial equipment.
PRODUCT SPECS
| Part Number | AL01121 |
| Model | DT590ZC TM |
| Static load rating |
3180 Kg |
| Screw stroke. +_ 10mm |
370mm |
| Tube size diameter x shape |
65 mm square |
| Unit weight |
10.5kg |
| Finish | Zinc plated |
| Mount | Tube mount |

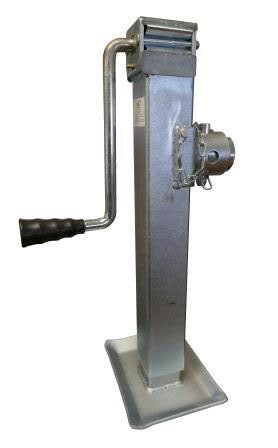

PRODUCT PHOTOS
