AL01115 SIMOL SIDE WIND DROP LEG 1500 Kg

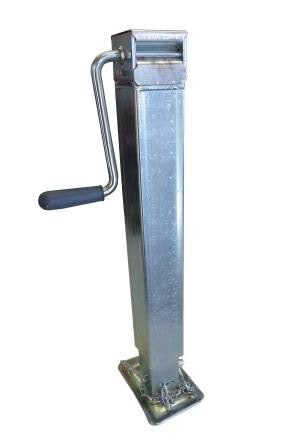

The AL01115 is an Italian made SIMOL side wind drop leg jack.

Capacity = 1500 Kg

Stroke = 370mm

Part Number  AL01115
Model  DT5903SFZ
Static load rating
 1500 Kg
Screw stroke. +_ 10mm
 370mm
 Tube size diameter x shape
 70mm square
 Unit weight
 12.5 Kg
Finish  zinc plated
Mount  none

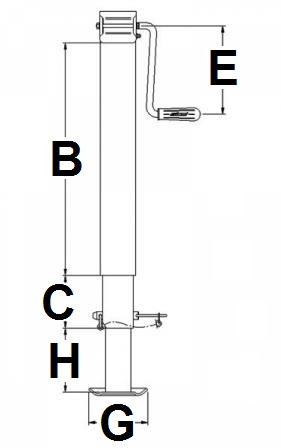

 B  460 mm
 C  370mm
E  170 mm
H  340mm
G 120mm x 165mm
