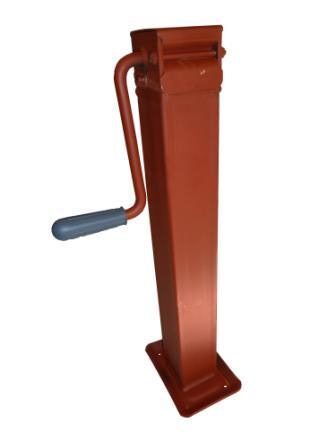

AL01114 SIMOL SIDE WIND 1500 KgThe AL01114 is an Italian made SIMOL side wind jack.
Capacity = 1500 Kg
Stroke = 370mm
| Part Number | AL01114 |
| Model | DT590 |
| Static load rating |
1500 kg |
| Screw stroke. +_ 10mm |
370 |
| Tube size diameter x shape |
70mm square |
| Unit weight |
10.5 kg |
| Finish | prime paint |
| Mount | none |

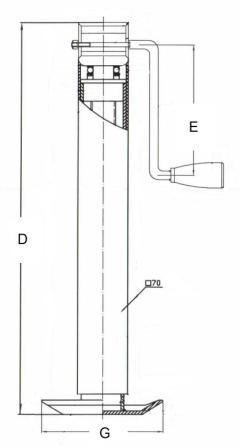

| D |
530mm |
| G |
120mm x 165mm |
| E | 175mm |
