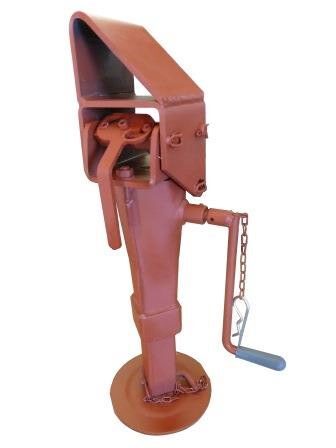

AL01108 SIMOL SIDE WIND DROP LEG 6000 Kg

The AL01108 is an Italian made SIMOL side wind jack with drop leg and top mount tipping connection with automatic security lock.

The swing away design makes it suitable for heavy tandem trailers.

Capacity = 6000 Kg

Stroke = 170mm

Part Number  AL01108
Model  SD613AL
Static load rating
 6000 Kg
Screw stroke. +_ 10mm
 170mm
 Tube size diameter x shape
 70mm
 Unit weight
 18.6 Kg
Finish  prime paint
Mount  top mount
 B  600 mm
 C  170 mm
D  375 mm
E  235 mm
G 220 mm
H 130 mm
