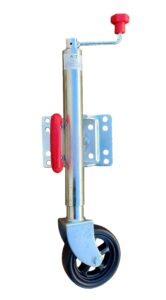

AL01357 JOCKEY WHEEL 455KgThe AL01357 swivel mount jockey wheel is a very popular choice for smaller trailers and allows for easy retraction of the wheel with minimal winding.
The swivel mount also ensures the jockey wheel is kept secure with the trailer.
| Part number | AL01357 |
| Model | JW2 |
| Wheel size Diameter x Width | 140mm x 45mm rubber |
| Outer tube size and shape | 50mm round |
| Static load rating in Kg | 455 Kg |
| Screw stroke in mm +- 10mm | 240 mm |
| Unit Weight | 5.8 Kg |
| Winding method | Top wind |
| Mount | Swivel - Bolt or weld on |
| Finish | Zinc plated. |
| Ground to centre of mount closed. | 305mm |
| OPTIONAL U BOLTS TO SUIT | |
| 75mm drawbar | AL01350 |
| 100mm drawbar | AL01351 |
