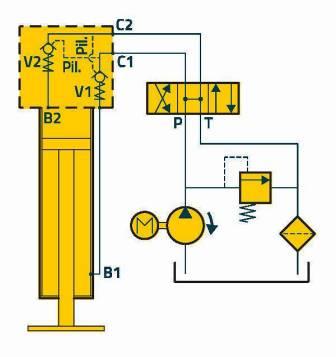

AL01316 HYDRAULIC JACKThe AL01316 is a double acting hydraulic jack with single block valve and is suitable for a wide range of agricultural and industrial applications.
Other features include: Rubber cushion foot plate
| Part Number | AL01316 |
| Model | H1152P |
| Static load rating @ 100 bar |
3800Kg |
| Static load rating @ 150 bar | 5700 Kg |
| Static load rating @ 200 bar | 7600 Kg |
| Max working pressure | 200 bar |
| Oil capacity | 1.87 lt |
| Stroke. +_ 10mm |
500mm |
| Hose ports | 3/8" Gas (BSPP) |
| Tube size diameter x shape |
110mm square |
| Unit weight |
41 Kg |
| Finish | Prime paint |

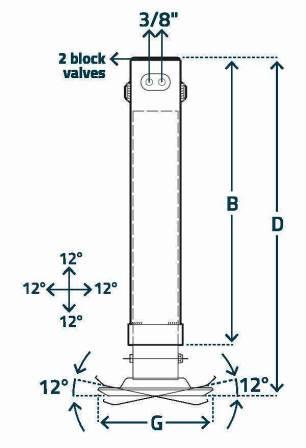

| B | 735mm |
| D = o/a closed height |
850mm |
| E = base plate |
250mm SQ |
