AL01313 HYDRAULIC JACK

The AL01313 is a double acting hydraulic jack with block valve and is suitable for a wide range of agricultural and industrial applications.

Part Number AL01313
Model H1040
Static load rating @ 100 bar

2800 Kg

Static load rating @ 150 bar 4200 Kg
Static load rating @ 200 bar 5600 Kg
Max working pressure 250 bar
Oil capacity 1.2 lt
Stroke. +_ 10mm
400mm
Tube size diameter x shape
100mm square
Unit weight
30 Kg
Finish prime paint
Mount none

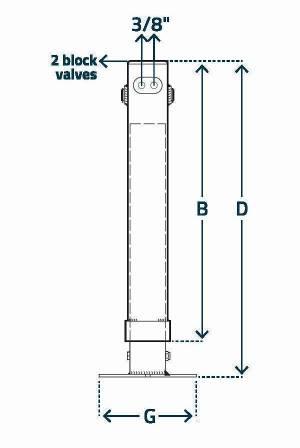

B
640mm
D = o/a closed height
730mm
G = base plate diameter
280mm
