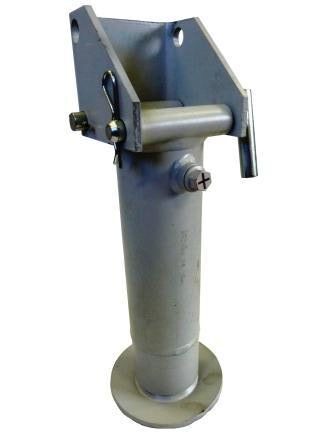

AL01104 HYDRAULIC JACKThe AL01104 is a compact single acting hydraulic jack with spring return. Its compact size and swing up mounting bracket make it ideal for applications with limited space.
| Part Number | AL01104 |
| Model | DH713 |
| Static load rating @ 100 bar | 5670Kg |
| Static load rating @ 150 bar | 8205 Kg |
| Max pressure | 210 bar |
| Working pressure | 150 bar |
| Oil capacity | 3.9 lt |
| Stroke. +_ 10mm |
250mm |
| Hose port | 1/2" Gas (BSPP) |
| Tube size diameter x shape |
100mm round |
| Unit weight |
17.4 |
| Finish | prime paint |
| Mount | top fold up |

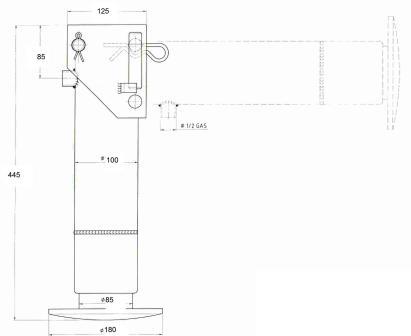

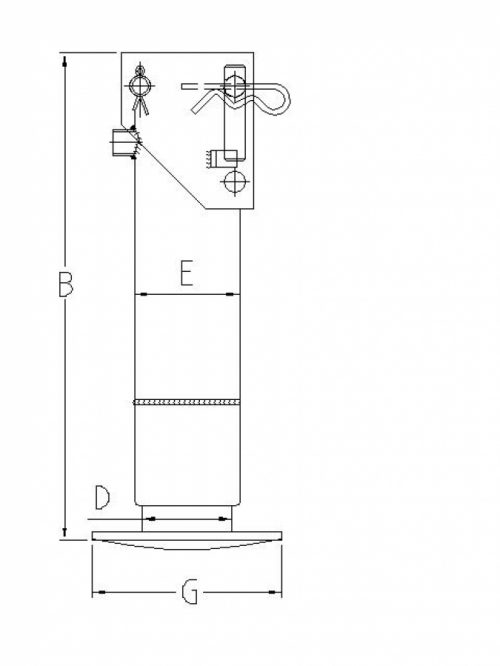

| B | 445mm |
| D | 85mm |
| E | 100mm |
| G | 180mm |
