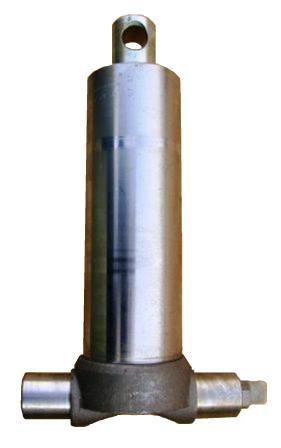

Hole end bottom mount cylinders
PRODUCT SPECS
| Cylinder specifications | ||||||||||||
| Part No | Stroke mm | No of Stages | Extension diameter in mm | Capacity @ 100 bar in Kg | Weight | Capacity | ||||||
| 46 | 61 | 76 | 91 | 107 | 127 | 146 | Kg | lt | ||||
| AL00087 | 700 | 3 | Y | Y | Y | – | – | – | – | 3000 | 17 | 2.7 |
| AL00093 | 800 | 3 | Y | Y | Y | – | – | – | – | 3000 | 18 | 3 |
| AL00100 | 1050 | 3 | – | Y | Y | Y | – | – | – | 5000 | 33 | 5.8 |
| AL00103 | 1150 | 3 | – | Y | Y | Y | – | – | – | 5000 | 36 | 6.3 |
| AL00105 | 1200 | 4 | – | Y | Y | Y | Y | – | – | 8000 | 35 | 8.1 |
| AL00115 | 1500 | 4 | – | Y | Y | Y | Y | – | – | 8000 | 38 | 10 |
| AL00120 | 1700 | 4 | – | Y | Y | Y | Y | – | – | 8000 | 45 | 11.3 |
| AL00116 | 1500 | 5 | – | Y | Y | Y | Y | Y | – | 9000 | 51 | 12.2 |
| AL00125 | 1850 | 5 | – | Y | Y | Y | Y | Y | – | 9000 | 59 | 14.9 |
| AL00127 | 2150 | 5 | – | Y | Y | Y | Y | Y | – | 9000 | 62 | 17.3 |
| Cylinder Dimensions | ||||||||||
| Part No | Dimensions of cylinders in mm | |||||||||
| A | B | C | D | E | H | I | L | P | Q | |
| AL00087 | 110 | 115 | 195 | 95 | 45 | 315 | 36 | 351 | 45 | 26 |
| AL00093 | 110 | 115 | 195 | 95 | 45 | 345 | 36 | 381 | 45 | 26 |
| AL00100 | 130 | 135 | 215 | 114 | 45 | 425 | 33 | 458 | 60 | 31 |
| AL00103 | 130 | 135 | 215 | 114 | 45 | 460 | 33 | 493 | 60 | 31 |
| AL00105 | 145 | 150 | 230 | 127 | 45 | 380 | 33 | 413 | 60 | 31 |
| AL00115 | 145 | 150 | 230 | 127 | 45 | 455 | 33 | 488 | 60 | 31 |
| AL00120 | 145 | 150 | 230 | 127 | 45 | 505 | 33 | 538 | 60 | 31 |
| AL00116 | 170 | 175 | 265 | 152 | 45 | 395 | 33 | 428 | 60 | 31 |
| AL00125 | 170 | 175 | 265 | 152 | 45 | 465 | 33 | 498 | 60 | 31 |
| AL00127 | 170 | 175 | 265 | 152 | 45 | 525 | 33 | 558 | 60 | 31 |
