The AL00630 gearbox is a designed to alter the output speed of your tractors PTO shaft.  Its versatile design allows the gearbox to be used as either an increasing ratio or decreasing ratio gearbox to suit your needs.

As a decreasing ratio gearbox it will reduce 1000 rpm PTO shaft speed to 540 rpm allowing the use of equipment designed to operate at 540 rpm.

As an increasing ratio gearbox it will increase 540 rpm PTO shaft speed to 1000 rpm.

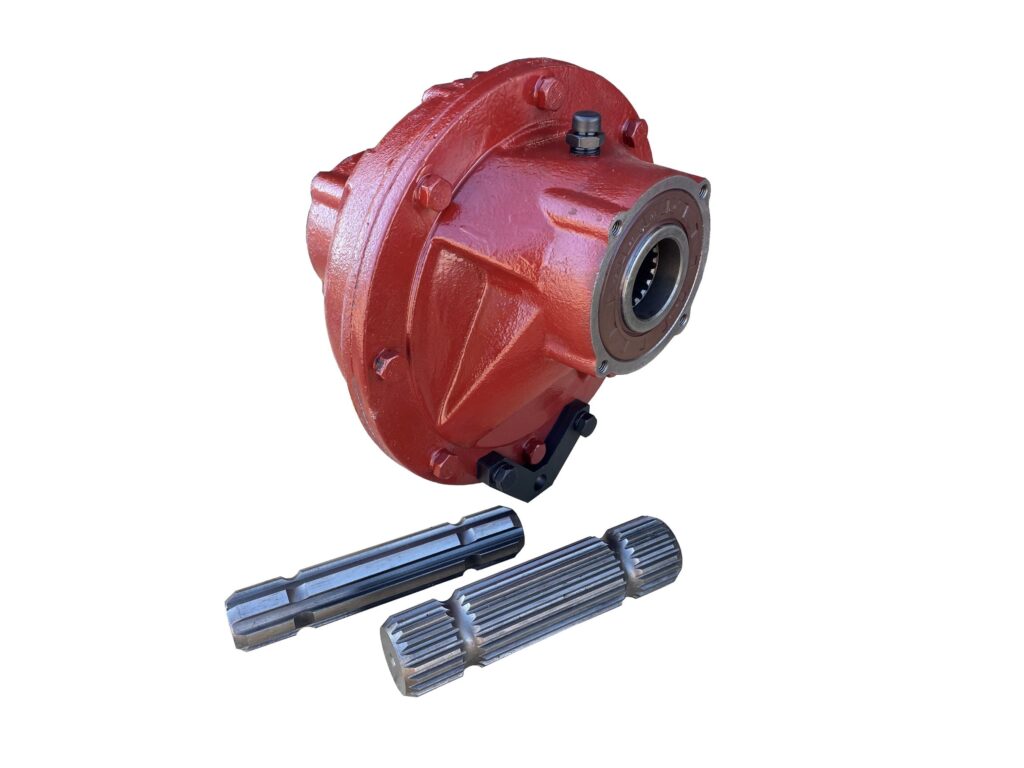

The AL00630 gearbox is assembled with 2 x internal splined sleeves. One 13/8"Z6 the other 13/4"Z20. These splined sleeves allow for direct coupling to your tractors PTO shaft as the input. The gearbox is also supplied with 2 x separate shafts with matching splines. These are easily assembled   to give you the required output shaft.

Notes:

-  Although designed for attachment to a tractors PTO shaft this gearbox can be used in other applications on agricultural machinery.

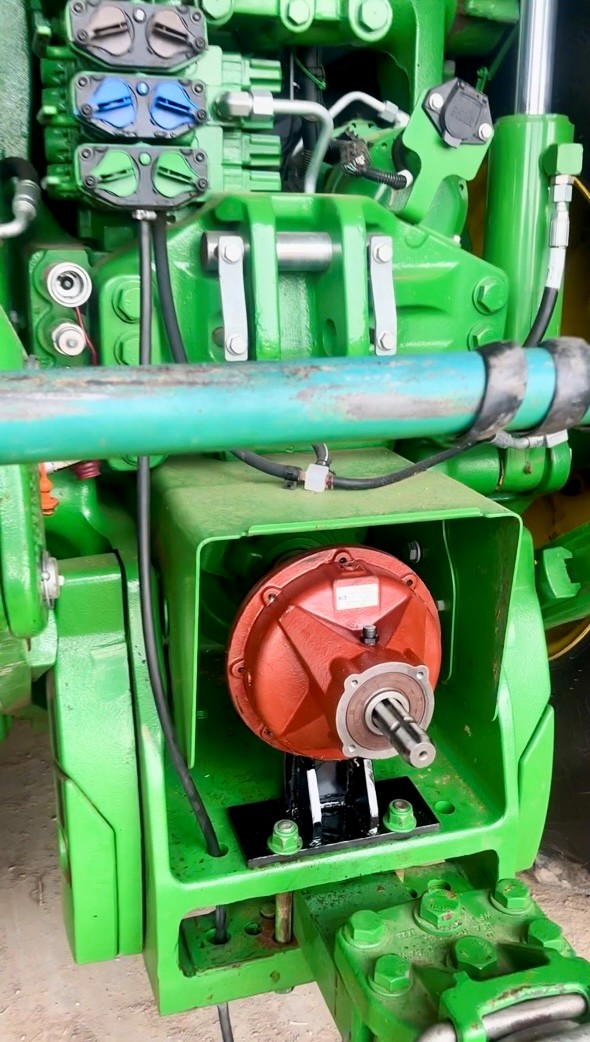

-  A lug is supplied fitted to the base of the gearbox housing. This must be securely attached to your tractor by way of a chain or mounting plate to ensure the gearbox does not rotate during operation.

- Gearboxes are shipped without oil. Please fill to the level plug with EP90 gear oil before use. Approx 1.4lt

-  This gearbox can be used on tractors  with  13/8"Z21 (1000rpm) PTO shafts with the addition of our splined adaptor AL00296 (13/8"Z21 internal - 13/4"Z20 external). AL00296 adds 130mm to length of drive line.

- Unit weight. Approx 28 Kg.



Part No Model Ratio Input RPM HP KW SHAFT TYPE
INPUT OUTPUT
AL00630 A1000D 1.88;1 540 105 78.3

13/4"Z20

SPLINED

SLEEVE

13/4"Z20

SPLINED

SHAFT

13/8"Z6

SPLINED

SLEEVE

13/8"Z6

SPLINED

SHAFT

1000 120 89.5
   A1000I   1:1.88   540  120  89.5

 13/8"Z6

SPLINED SLEEVE



 13/8"Z6

SPLINED SHAFT



 13/4"Z20

SPLINED

SLEEVE



 13/4"Z20

SPLINED

SHAFT


   1000  120  89.5

1.85:1 speed reducer with 13/8" Z6 splined output shaft.

1:1.85 speed increaser with 13/4"Z20 splined output shaft.

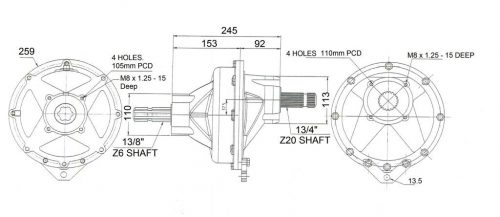

Click on drawing to enlarge.

NOTE: When fitting splined shafts.

Take care when tightening the 4 x locking bolts inside the housing. These bolts fix the removable splined shafts in place.

1) Tighten bolts to avoid oil leaking during operation. (The bolts have a seal under their heads.)

2) Loosen the bolts only when fitting the shafts. DO NOT remove the bolts completely. If removed they may drop into the housing and cause a failure. The box must be disassembled to retrieve the bolts if this happens.
