The FRA8 1:1 ratio forward reverse gearbox is designed for use on grain handling augers. The gear selector allows for forward, reverse or neutral movement.
Its new design offers:
- Increased HP rating. Now 30 HP @ 540RPM.
- Improved gear selector and shaft assembly.
- Improved internal gear mechanism.
- Mounting holes for safety covers.
- Mounting bolt pattern allows for easy replacement of old Andiline FR100 model gearboxes.
Warning: The gearbox shafts should be stationary before selecting gears. Any movement of the shafts during this procedure can cause unnecessary wear of the selector mechanism and will shorten the working life of the gearbox.
Note: The standard model offered is the FRA8 which is a 3 shaft T design box.
2 shaft or L versions are available for this gearbox only under volume OEM orders at this stage.
FRA8L. Left Hand output. Part AL01240
FRA8R. Right hand output. Part AL01237
| Part number | AL01241 |
| Model | FRA8 |
| Gear ratio | 1:1 |
| Power rating |
30HP (22KW) @ 540 rpm 46HP (33KW) @ 1000 rpm |
| Input torque |
389NM @ 540 rpm 315NM @ 1000 rpm |
| Output torque |
389NM @ 540 rpm 315NM @ 1000 rpm |
| Unit weight | 16kg |
| Mounting | 4 x holes at 88mm centres |
| Shafts | 30mm diameter with 8mm key. |
| Lubricant | SAE 90 gear oil |

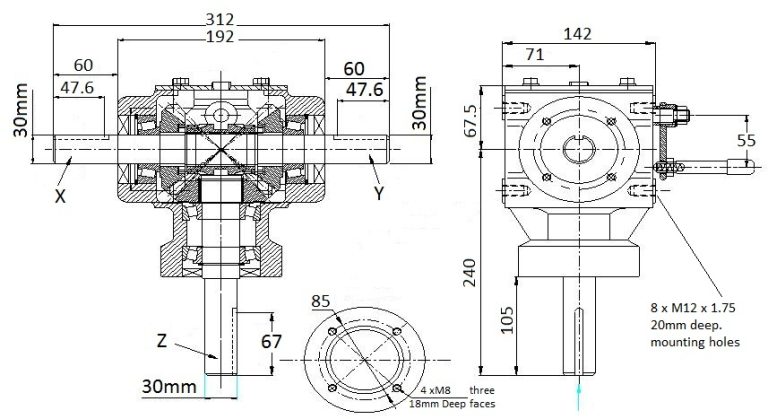

Click on the drawing below to enlarge.
